OPTICAL RADIUS ANGLE DRESSER MODEL KT50
ชุดแต่งหินเจียรนัย KT50
Visual Universal Wheel Dresser Adaptable on Surface grinder and universal tool grinder for dressing grinding wheel into various cross sections of flat or curved shapes. By “SIGHTING” the diamond point through the lens.
Radii and angles can easily be made perfectly tangent- Visually-Even with diamond. Likewise radii can be blended together with most unbelievable accuracy.
มีเลนส์ขยายสำหรับแต่งหินเจียรนัย สำหรับงานละเอียด

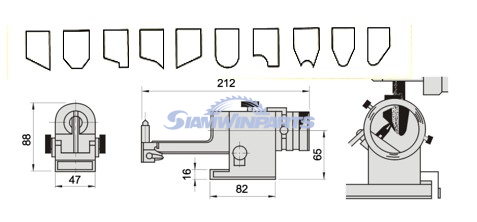

Main Parameters
Center height……………..……..…............................65mm
Max wheel diameter………............................…...205mm
Max convex radius…………............................…0.2-10mm
Max concave radius………..............................0.2-25.4mm
Dressing angle………..................95 degree, 0-95 degree
Tangential travel……...........................…Appox.22.5mm
N.W……………………………..……...............................3.2 kg
