Analogue Bore Gauge
Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical
travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary.
Their wide application range, 2 – 300mm, rugged construction and easy read scale, ensure both accuracy and ease of use.
XT measuring heads and setting rings are supplied with UKAS certification.
Features
Features:
● Range 2 - 300 mm (0.080” – 12”)
● 2 – 6 mm 2 point/6 – 300mm 3 point measurement
● Graduation 2-6mm: 0.001mm, 6-300mm: 0.005 mm
● Tungsten carbide measuring faces on all 3-point heads from 12.5mm
● Blind bore measurement from 2mm-6mm and above 12.5mm 0.500”)
● Extensions available above 6mm for deep hole measurement
● Ratchet stop to ensure consistent measurement

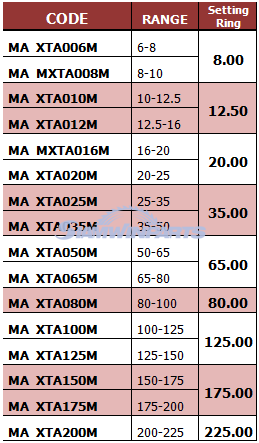

● Setting rings included with individual instruments and sets
● UKAS certificates supplied as standard with all setting rings
● UKAS certificates supplied as standard with all XT mechanical micrometers
● Serial number on all gauges

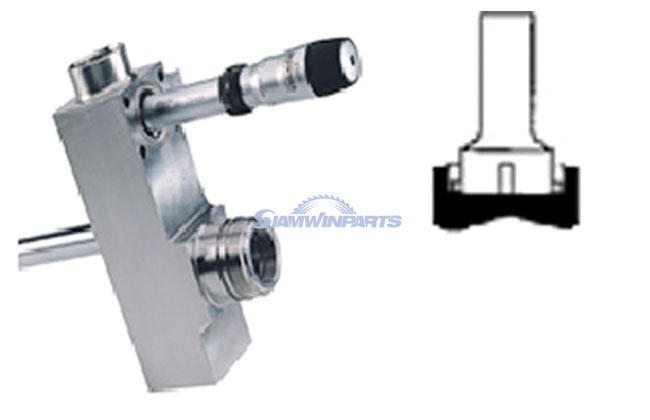

● Heads with special anvils available to suit specific customer requirements (e.g. groove measurement)
● Bore gauges manufactured according to DIN 863, part 4
